Narrow steel strip

Narrow Steel Strips:
1.Strict tolerance, High precision flatness.
2.Smooth round edge, Slit edge with no burring
3.High degree of toughness, Strong fatigue resistance
4.Flat and smooth surface with no defect and burrs
5.With uniform elasticity, high wear resistance and other properties, our steel strips materials remains efficient and reliable in industrial applications.

Download ingredient list
Product Description
 Narrow Steel Strip Material Specifications
Thickness  0.15mm - 3.00mm
Width 5 mm - 25mm
Hardness 40 - 55 HRC
Surface Polish, Blue, Yellow
Edge Round, Slit, Square
Grade CK60、CK67、CK75、SK85、SK5, SK4, 60Si2Mn、50CrV4
Delivery Time 35 working days after the deposit receipt

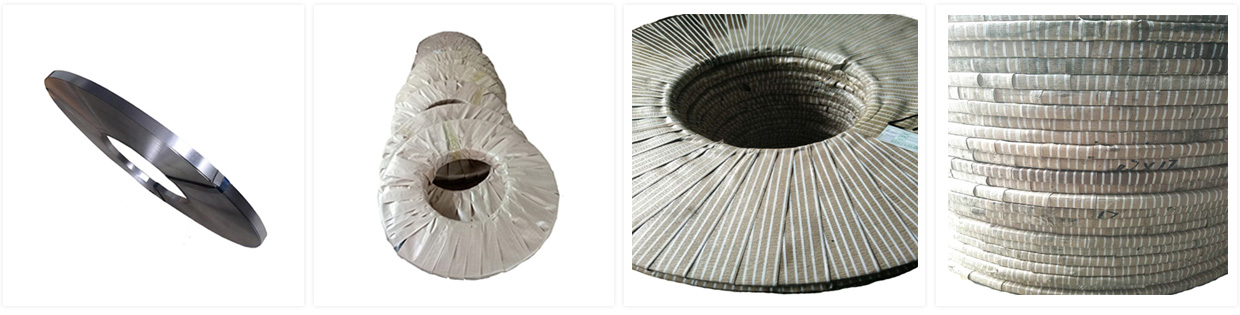

narrow steel strip coil

Videos of width slitting



Main Application Range

Common size

Narrow Band Saw Blade Small Spring Blade Tape Measure Textile Machine Needle Dipstick Car Door Anti Collision Strip with Steel Steel Belt for Tying Car Battery

 0.4-0.8mm*4-9.35mm

0.6-0.7mm*13-30mm

0.2-3.0mm *5-25mm

0.15*35mm 0.1*20.4mm 0.4*4mm 0.5*5mm 1.0*19-24mm 0.83-1.0mm*19.1mm

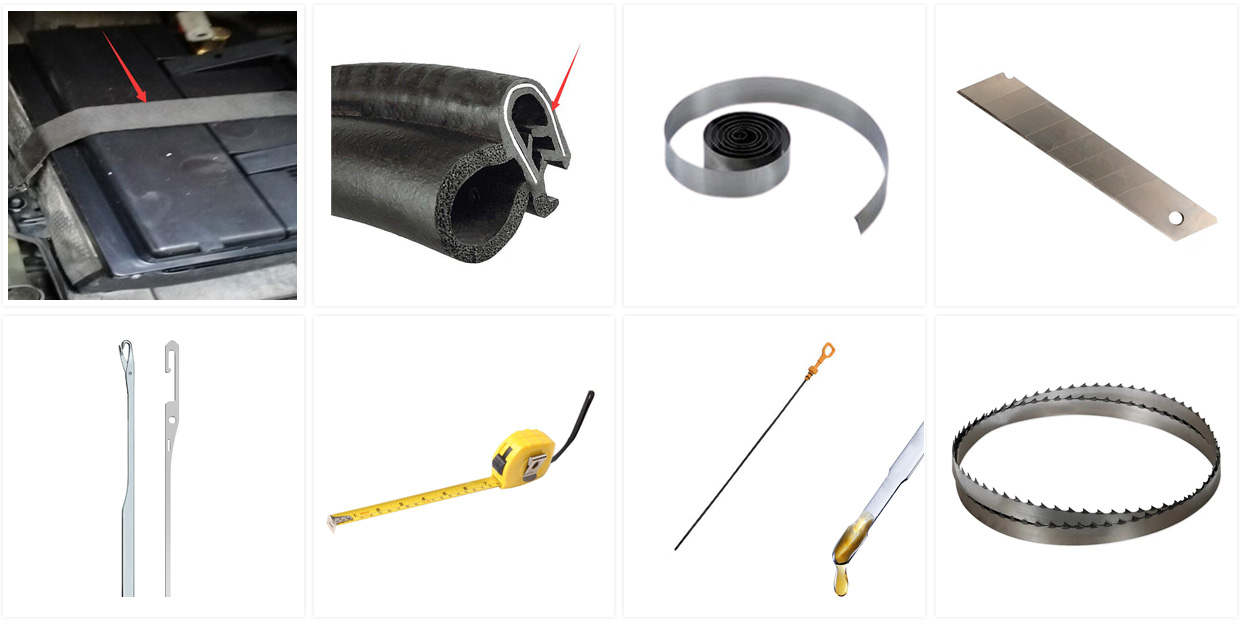

narrow steel strip application



 Package
Roll Diameter Inside Diameter:200-400mm
Roll Weight 20-60kg


narrow steel strip packaging
